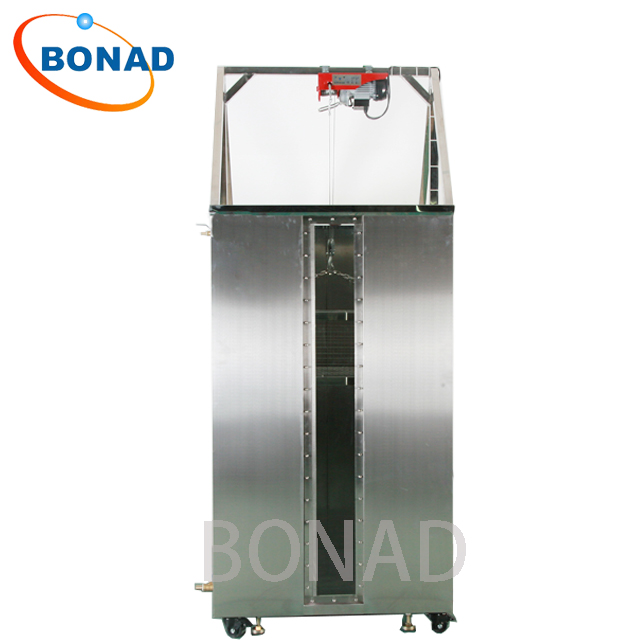

IPX7 Waterproof Test chamber with lift
Model:BND-IPX7BS
Materal: steel stainless
|
Technology parameter :
|
|
No.
|
Model
|
BND-IPX7BS-108L
|
BND-IPX7BS-432L
|
BND-IPX7BS-960L
|
BND-IPX7BS-1200L
|
BND-IPX7BS-1728L
|
|
1
|
Inner size(mm)
|
300*300*1200
|
600*600*1200
|
1000*800*1200
|
1000*1000*1200
|
1200*1200*1200
|
|
2
|
outer size(mm)
|
360*360*1300
|
660*660*1300
|
1080*880*1300
|
1080*1080*1300
|
1280*1280*1300
|
|
3
|
Thickness of plate
|
1.5mm
|
1.5mm
|
1.5mm
|
2mm
|
2mm
|
|
4
|
highest water depth
|
1.2m
|
|
5
|
Water adjustment
|
Manual adjustment
|
|
6
|
Water level display
|
Stainless steel ruler（show several degree 1mm）
|
|
7
|
Tank material
|
Stainless steel
|
|
8
|
Standard
|
IEC60529:1989+A1:1999、GB4208、GB7000.（IPX7)
|
1. Install an electric lifting device (loading 300KG) above the chassis to place a large number of test samples.
2, stainless steel sample basket, the skeleton is made of stainless steel square pass, and the surrounding and bottom are made of stainless steel mesh.

|
